Polyurethane Sandwich Panel Making Machine

Sinowa is a high-end & high precision polyurethane sandwich panel making machine manufacturer from china, customize polyurethane sandwich panel making machine according to customer needs, reasonable price and high-quality service. We will continue to create more and better polyurethane sandwich panel making machine according to your requirements and assist you in the road to success!

Polyurethane sandwich panel making machines stand as core industrial equipment dedicated to the mass production of high-performance polyurethane sandwich panels, integrating mechanical transmission, precision control, chemical foaming and molding technologies into a unified and efficient system. These machines have reshaped the manufacturing landscape of insulated building panels and industrial composite panels by streamlining the production process, enhancing product consistency and meeting the diverse performance demands of various industries. Unlike fragmented manual production, these automated machines execute a full chain of operations from raw material feeding to finished panel molding, cutting and stacking, ensuring that each polyurethane sandwich panel delivers stable structural strength, exceptional thermal insulation and reliable durability. The design and configuration of these machines directly determine the quality indicators of the final panels, including dimensional accuracy, core density uniformity, bonding fastness between the foam core and surface layers, and overall mechanical properties, making them irreplaceable in modern industrial and construction manufacturing sectors.

Sinowa dedicated to the research and development of high-end and high-efficiency Sandwich Panel Production Line, Sinowa is comprehensively taking the leading position in terms of efficiency, automation control level, HMI, environment protection and energy consumption, with subversive designs made in some critical technological fields to procure exceptional cost performance and customer-friendly experience for the entire production line. The adoption of system integration technology and bus control technology accomplishes the full automatization of integrated and coordinated control of the entire production line with accessible remote interactive communication. Ranking the first-class level in the world, it is currently the PU Sandwich Panel Machine in the market taking a comprehensive lead in high performance.

Sinowa is a well-known manufacturer and technical service provider of high-end PU Sandwich Panel Machines and various high-performance Cold Roll Forming Machine in China. Our main products include polyurethane double-sided color steel Sandwich Panel Production Line, polyurethane and phenolic soft facing insulation panel production line and high-efficiency roll forming lines.

Sinowa is committed to the development and manufacturing of high-end and high-efficiency Sandwich Panel Lines. Our production lines are leading the way in efficiency, automatic control, human-computer interaction, environmental protection and energy consumption. Using system integration and bus control technology, it realizes the automatic integrated linkage control of the entire production line, and can achieve remote interactive communication, which has the world-class level and a comprehensive leading high-performance production line in the market.

For more than ten years, we have never deliver two same lines to our client, there are all the crystallization of continuous improvement, we have been trying to surpass ourselves, create better products to serve our customers, and also accumulate our brand value, become a unique Chinese enterprise, we are no longer synonymous with low price and mediocre quality.

Since 2014, we have established our Cold Forming Machine design and manufacturing department, started our R&D and production of high-end cold forming equipment. Base on our innovative and high-end and efficient product concepts,In just a few years, we have created our own impressive achievements in this field. Whether ordinary construction products of Roll Forming Machine, or precision steel pipe equipment, elevator profile equipment, automotive profile equipment, precision door and window profile equipment, we are the leader of Chinese equipment with high efficiency, high quality and beautiful appearance design.

For more than ten years, relying on our innovative manufacturing concept and excellence in quality, reliable and trustworthy service to customers, we cooperate with customers all over the world, exported products to Canada, South Korea, Israel, Australia, the Middle East and other more than 20 countries and regions. contributed to building energy conservation and low-carbon production and have won widespread praise.

Sinowa has invested outstanding efforts in both the Continuous Insulated PU Sandwich Panel Production Line and the Roll Forming Line, This is why our products are more efficiency, quality, automatic control technology, environmental protection, energy consumption indicators and the appearance and safety protection are comprehensively leading, Some subversive design changes in many major technical points,these major innovations make our products excellent in price/performance and user experience.

We always position our PU Sandwich Panel Line in a very high standard, strictly optimize every design for more progress. Our continuous innovation, continuous improvement of the technical design principles make us improved product updates and always pay attention to high efficiency, energy saving and stability, reduce customer worries, become their reliable business partners.

Sinowa Engineering Technology Research Center has always focused on technology research and development. we achieved a large number of scientific research results and unique patented process technology in related product research and development t every year, we continuously improve our products to have high precision and high stability in practical applications, and provide high quality for customers all over the world. Excellent technical personnel, continuous R&D investment and the technical concept of "continuous innovation and continuous improvement" are the strong guarantee for Sinowa to stand out from competitors.

Our focus is not on cost, we always pay attention to the quality of the product and how to do it better!

Production process control is a core part of implementing product planning and implementing quality control, which we establish A full range of production management processes and product logistics systems. We firmly believe that production without control and rules will only produce garbage products, so we pay more attention to first-class production control training while establishing a first-class production workshop, strictly follow the 5S management concept, establish systems and standards, ensure that our Sandwich Panel Machines are qualified throughout the process, achieve the technical goals of the company's products to achieve our brand value.

Sinowa has a very comprehensive quality control system, has a group of professional quality control personnel, familiar with almost all testing methods and standards in the field of machining, established a complete mechanical and chemical laboratory with which can fully control all quality links and ensure that all data are accurate, timely optional and available.

Relying on our good Sandwich Panel Machine quality and trustworthy service, our products are exported to more than a dozen countries in the world, and the service field continues to expand, winning more and more praise. Every customer will be our best friend!

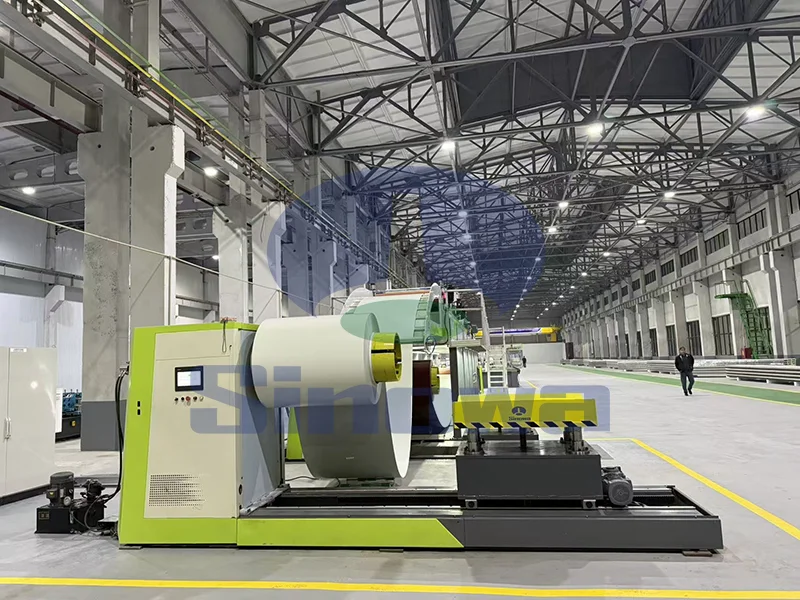

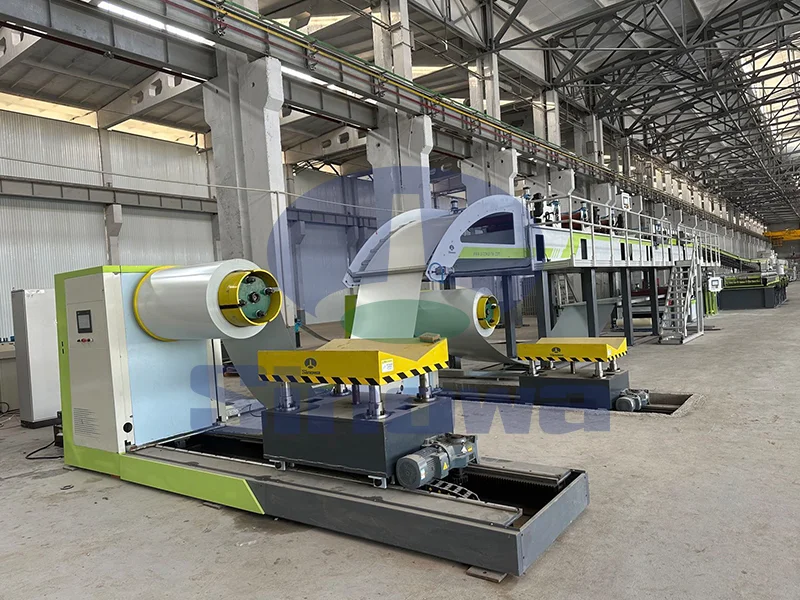

Starting with the core structural composition of polyurethane sandwich panel making machines, the entire equipment system is composed of several interconnected and synergistic functional modules, each undertaking a unique and critical task in the production flow. The first core module is the raw material handling and feeding system, which is responsible for the stable supply of surface layer materials and polyurethane chemical raw materials. For surface layers, which are commonly metal coils such as galvanized steel, aluminum alloy and colored coated steel, the feeding system consists of uncoiling devices, leveling mechanisms and deviation correction components; the uncoiler smoothly unwinds the coiled sheet materials, the leveler eliminates surface wrinkles and curvature to ensure flatness, and the automatic deviation corrector prevents lateral displacement of the sheets during transmission, avoiding uneven edge trimming or defective panel molding. For polyurethane raw materials, which are typically two-component liquid mixtures, the system includes precision storage tanks, metering pumps, temperature control assemblies and pipeline conveying units. The storage tanks maintain constant temperature conditions to keep the raw materials in optimal fluid state, the high-precision metering pumps control the mixing ratio of the two components with extreme accuracy, and the insulated pipelines prevent temperature fluctuations that could alter the chemical properties of the raw materials, laying a solid foundation for uniform foam foaming.

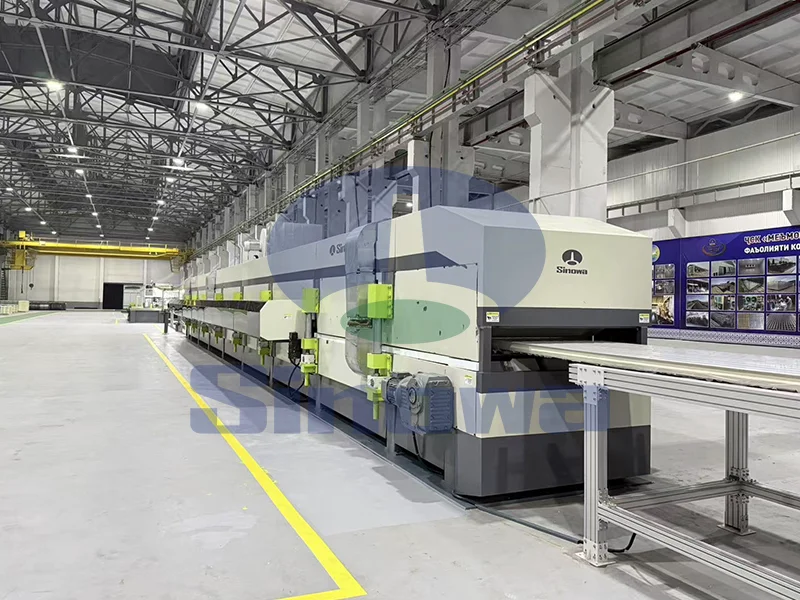

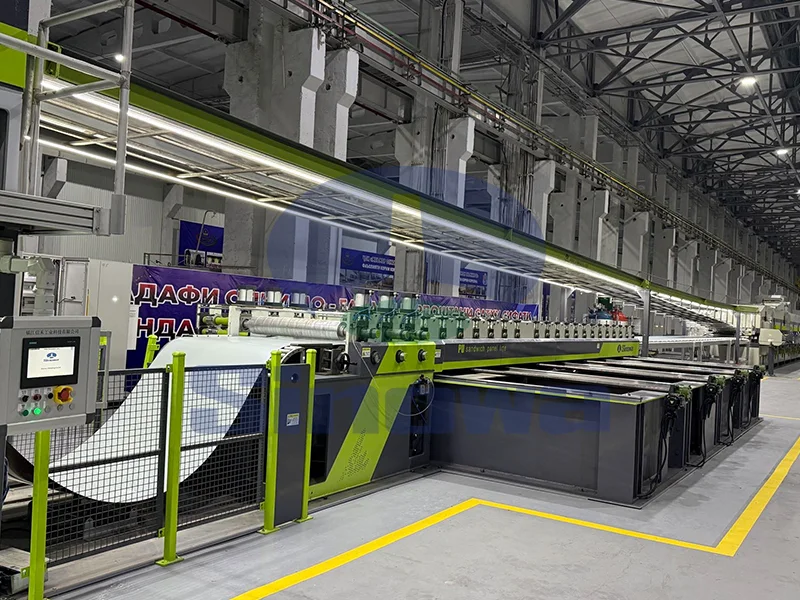

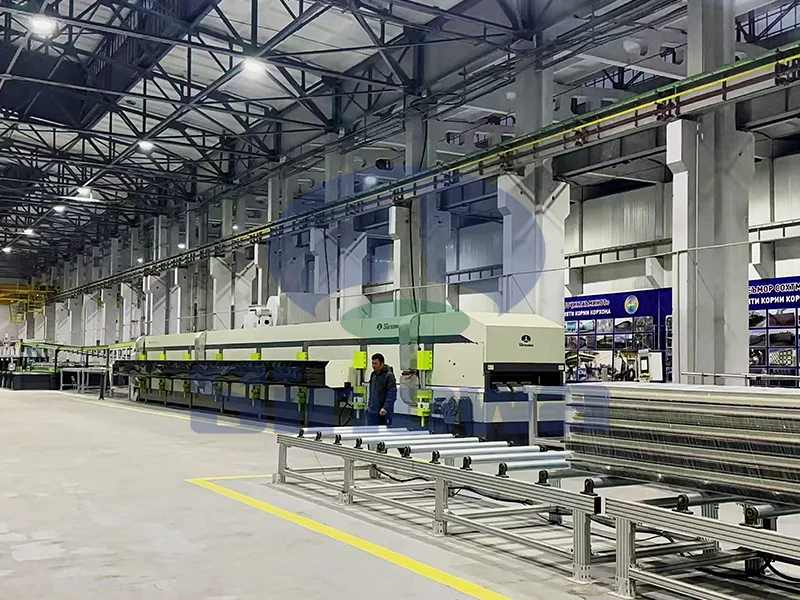

The second pivotal structural module is the forming and laminating system, which is the heart of the polyurethane sandwich panel making machine, where the sandwich structure of surface layers and foam core is initially shaped. This module mainly includes a double-belt conveyor, a heating and curing zone, a pressure control mechanism and a profile molding assembly. The double-belt conveyor consists of upper and lower high-temperature resistant conveyor belts, which clamp the upper and lower surface layers and the injected polyurethane mixture tightly, maintaining a fixed thickness and stable transmission speed throughout the process. The heating and curing zone is equipped with uniform heating elements, usually hot water circulation or electric heating devices, which provide the necessary temperature for the chemical foaming and curing reaction of polyurethane, accelerating the cross-linking and solidification of the foam core while enhancing the bonding force between the foam and the surface layers. The pressure control mechanism applies stable and adjustable pressure to the sandwich structure, preventing bubbles, delamination or uneven thickness caused by excessive foaming expansion, and ensuring the compactness and flatness of the panel. The profile molding assembly, installed at the front end of the forming system, can process the surface layers into various shapes such as flat, corrugated and ribbed according to production needs, expanding the application scenarios of the finished panels.

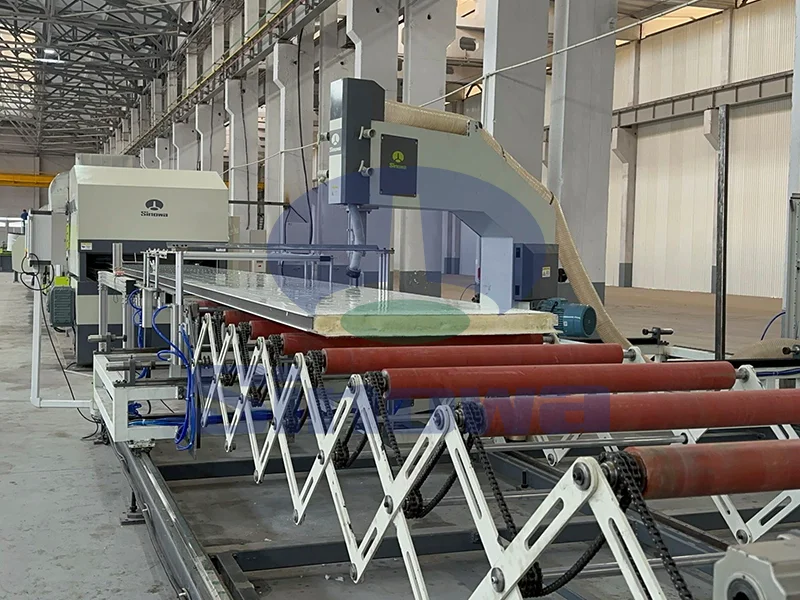

The third essential module is the precision cutting and post-processing system, which transforms the continuously produced long sandwich panels into finished products of specified dimensions. This system integrates a servo-driven cutting machine, a dust removal device and a panel conveying and stacking mechanism. The servo cutting machine adopts high-speed saw blades or non-damaging cutting tools, driven by a precise servo motor to achieve accurate positioning and fast cutting, with dimensional error controlled within an extremely small range to meet the strict assembly requirements of construction and industrial projects. The dust removal device synchronously operates during the cutting process, absorbing foam debris and metal dust generated by cutting, keeping the production environment clean and avoiding dust adhesion affecting panel surface quality. The post-processing conveying and stacking mechanism gently transports the cut panels to the designated area, realizing automatic stacking without scratching or deforming the panels, reducing manual handling and improving production efficiency. In addition, the entire machine is equipped with an intelligent control system, usually a PLC-based control cabinet with a human-machine touchscreen, which allows operators to set and adjust key parameters such as transmission speed, heating temperature, foaming pressure and cutting length in real time; the system also has fault self-diagnosis and alarm functions, timely detecting abnormal operations such as material jams, temperature anomalies and pressure fluctuations, ensuring the stable and safe operation of the equipment.

In terms of operational performance, polyurethane sandwich panel making machines boast a range of outstanding advantages that meet the high standards of industrial mass production. Firstly, the equipment features high production efficiency and continuous operation capability, with the fully automated production line realizing uninterrupted processing from raw material input to finished product output. The transmission speed can be adjusted adaptively according to the curing speed of polyurethane foam and production demand, greatly improving the hourly output compared with traditional discontinuous production equipment, and adapting to large-scale order production in the market. Secondly, the equipment delivers exceptional molding precision and product consistency, thanks to the coordinated operation of precision metering, stable pressure and temperature control and servo cutting systems; each batch of panels maintains uniform thickness, consistent core density and accurate dimensions, eliminating quality differences caused by manual operation, and ensuring that the finished panels meet the design requirements for structural performance and insulation effect.

Thirdly, the equipment exhibits strong adaptability and flexibility, capable of producing polyurethane sandwich panels of different specifications, thicknesses and surface styles by replacing molds, adjusting control parameters or switching raw material types. It can adapt to various surface layer materials such as metal sheets, fiber cement boards and decorative panels, and produce panels with thickness ranging from a few centimeters to dozens of centimeters, catering to diversified market demands. Fourthly, the equipment has stable operation and low failure rate, with key components made of high-strength wear-resistant materials, and the transmission system adopting precision bearings and gear structures to reduce mechanical wear; the intelligent control system optimizes the operation process, reducing energy loss and mechanical failure caused by improper operation, and prolonging the service life of the equipment. Additionally, the equipment has good safety and environmental performance, with protective barriers installed around the operating area to prevent operators from contacting high-temperature or moving parts, and waste gas and residue generated during production collected and treated centrally, complying with industrial environmental protection requirements.

Polyurethane sandwich panel making machines are classified into multiple types based on production process, automation degree and application scenarios, each with unique characteristics and applicable production modes. The most common classification is based on production process, dividing the equipment into continuous production machines and discontinuous production machines. Continuous production machines are the mainstream type for large-scale mass production, adopting a double-belt continuous molding process, with the entire production line running continuously without interruption; they feature high output, stable product quality and low labor cost, suitable for manufacturers with large order volume and fixed product specifications, and are widely used in the production of standard building insulation panels and cold storage panels. Discontinuous production machines, also known as press-type molding machines, adopt a single-piece or batch pressing and foaming process, with each panel produced independently in a press mold; they have the advantages of small floor space, strong flexibility and suitability for small-batch customized production, and are ideal for producing special-sized panels, profiled panels or panels with special performance requirements, such as curved sandwich panels and thickened load-bearing panels.

Based on automation degree, the machines can be divided into fully automatic production lines, semi-automatic machines and manual auxiliary machines. Fully automatic production lines integrate all functional modules, realizing automatic uncoiling, leveling, forming, foaming, cutting and stacking, with only a small number of operators required for parameter setting and equipment monitoring; they have the highest production efficiency and product quality stability, but require a larger initial investment and are suitable for large and medium-sized manufacturing enterprises. Semi-automatic machines need manual assistance in part of the process, such as manual feeding of surface layers or manual transfer of semi-finished panels; they have a more compact structure, lower cost and easier operation, suitable for small and medium-sized enterprises with limited production scale and budget. Manual auxiliary machines are mainly used for small-batch trial production or simple panel processing, with most operations completed manually, and are only suitable for small-scale production with low precision requirements.

According to application scenarios and product functions, the machines can also be divided into cold storage panel special machines, building wall and roof panel machines, automotive and transportation insulation panel machines and industrial special panel machines. Cold storage panel special machines are designed to produce panels with ultra-high thermal insulation performance, optimizing the foaming and curing process to ensure the foam core has low thermal conductivity and good airtightness, meeting the low-temperature insulation requirements of cold storage. Building wall and roof panel machines focus on the structural strength and weather resistance of panels, with enhanced pressure molding and surface treatment functions to produce panels that can withstand outdoor wind, rain and temperature changes. Automotive and transportation insulation panel machines are designed for lightweight and high-strength requirements, producing thin and tough sandwich panels for carriages, containers and refrigerated trucks. Industrial special panel machines are customized for special industrial needs, such as high-temperature resistant panels, sound insulation panels and fire-resistant panels, with targeted adjustments to the production process and structural design.

The wide application of polyurethane sandwich panel making machines has promoted the popularization and application of polyurethane sandwich panels in various industries, thanks to the high-quality panels produced by the equipment. In the construction industry, polyurethane sandwich panels are widely used in the exterior wall insulation, roof insulation and partition walls of industrial plants, warehouses, commercial buildings and residential buildings; the panels produced by these machines have excellent thermal insulation performance, which can effectively reduce building energy consumption, and their light weight and high strength characteristics can reduce the load of building structures and speed up construction progress. In the cold chain logistics industry, the panels are the core material for constructing cold storage, refrigerated warehouses, constant temperature workshops and refrigerated truck carriages; the low thermal conductivity and good airtightness of the panels ensure stable temperature control inside the cold chain equipment, reducing energy loss of refrigeration systems and ensuring the quality and safety of food, medicine and other perishable goods.

In the transportation industry, polyurethane sandwich panels produced by the machines are used in the body manufacturing of refrigerated trucks, insulated containers, passenger ships and special vehicles; the lightweight design of the panels reduces the overall weight of transportation tools, improving fuel efficiency and loading capacity, while the good insulation performance meets the temperature control needs of special cargo transportation. In the agricultural field, the panels are used to build insulated greenhouses, livestock and poultry breeding houses and agricultural product storage rooms; the panels can maintain a stable internal temperature and humidity, creating a suitable growth and storage environment for crops and livestock, and improving agricultural production efficiency. In addition, polyurethane sandwich panels are also used in the construction of temporary houses, emergency shelters and industrial clean rooms; the panels are easy to install and disassemble, have good sound insulation and fire resistance, and meet the functional requirements of different special scenarios.

With the continuous development of energy-saving and environmental protection concepts and the upgrading of industrial manufacturing technology, polyurethane sandwich panel making machines are also constantly innovating and upgrading. The future development trend of these machines focuses on higher intelligence, energy efficiency and flexibility, such as integrating artificial intelligence technology to realize automatic adjustment of production parameters and unmanned operation, optimizing the heating and transmission system to reduce energy consumption, and enhancing the equipment's adaptability to multi-variety and small-batch production. As the core equipment for producing high-performance polyurethane sandwich panels, these machines will continue to play a vital role in promoting the development of energy-saving construction, cold chain logistics and other industries, and meeting the market's demand for high-quality, environmentally friendly and efficient composite panels. The continuous optimization of their structure, performance and types will further drive the upgrading of the entire polyurethane sandwich panel industry, creating greater economic and social value.
